KEA AUDIO
was named after the rare mountain parrot 'Kea'.

more...




Home
hifi loudspeakerhifi loudspeaker

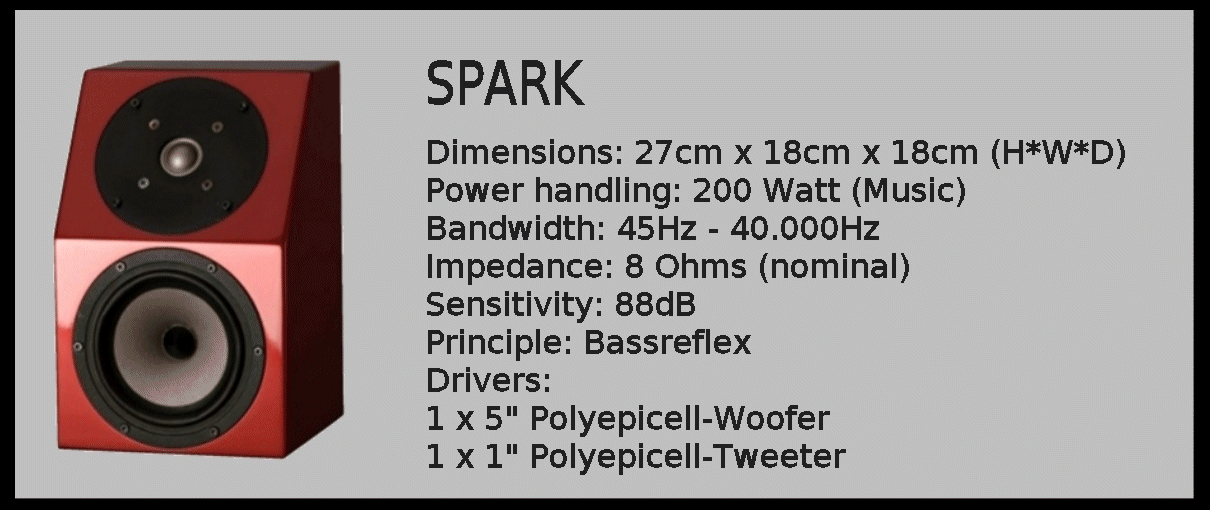

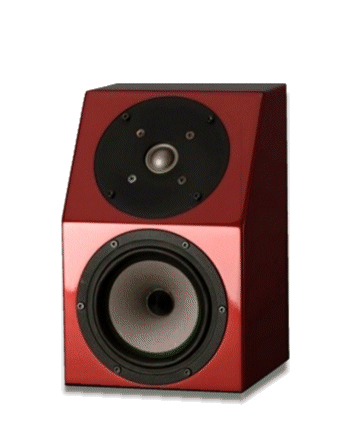

SPARK

The shelf speaker KEA AUDIO SPARK produces sparkling trebles and an impressive bass at compact dimensions. It is perfectly suited for home-theater applications. The KEA AUDIO SPARK is equipped with our Polyepicell cones and guaranties a unique clarity and an intoxicating liveliness.
  hifi stereo loudspeakerhifi loudspeaker

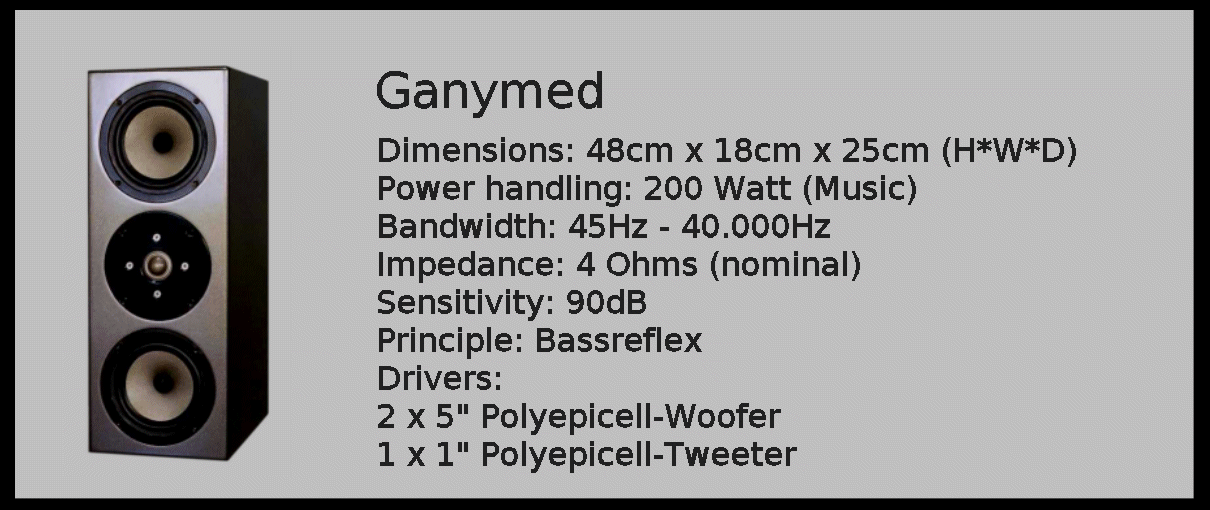

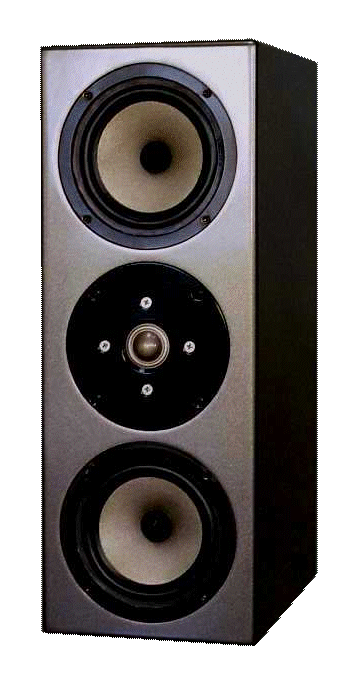

GANYMED

The two-way speaker KEA AUDIO GANYMED is designed for the audiophile. Its symmetric D'Appolito speaker arrangement enhances significantly stage imaging. The natural and impulsive bass, the articulate and detailed midrange and the transparent treble characterise this extraordinary speaker.

high end loudspeakerhifi loudspeaker

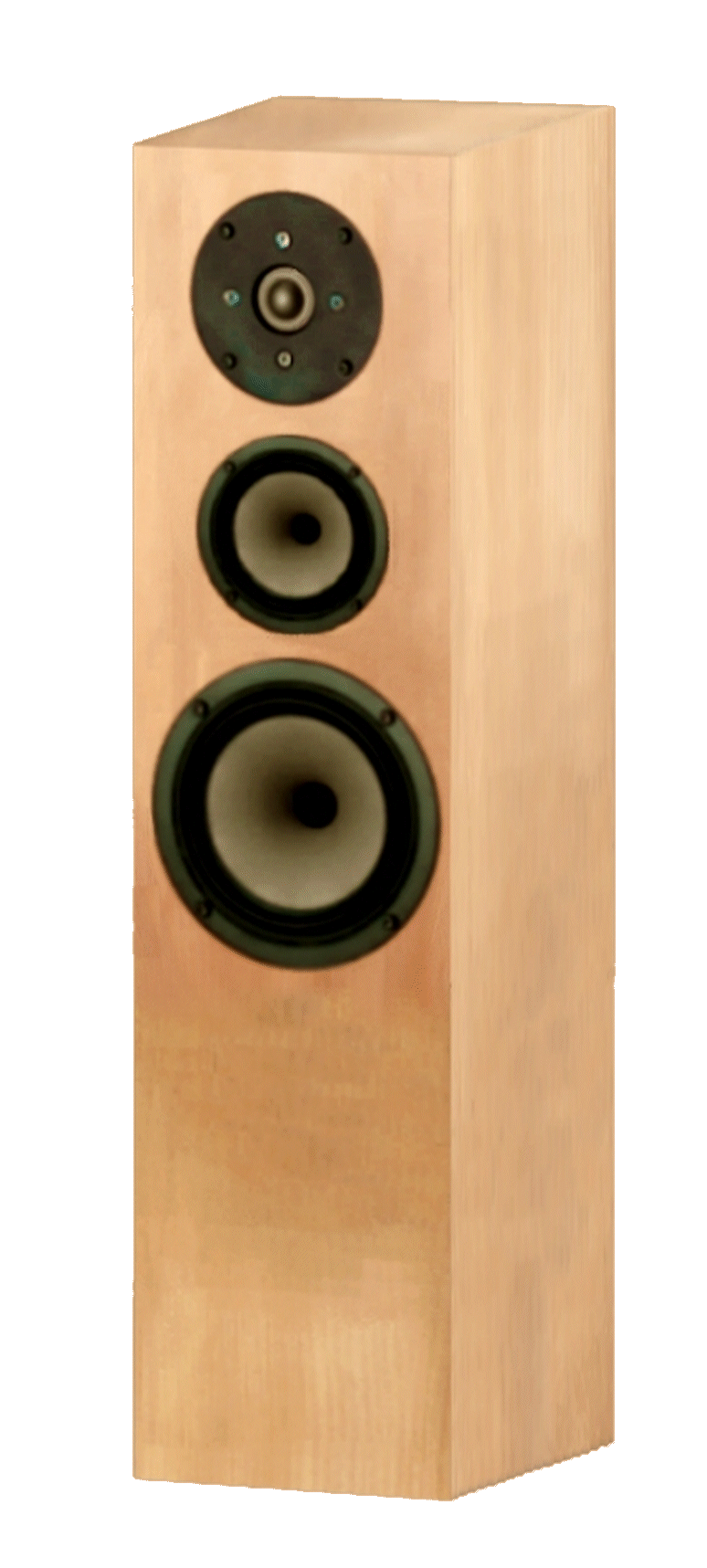

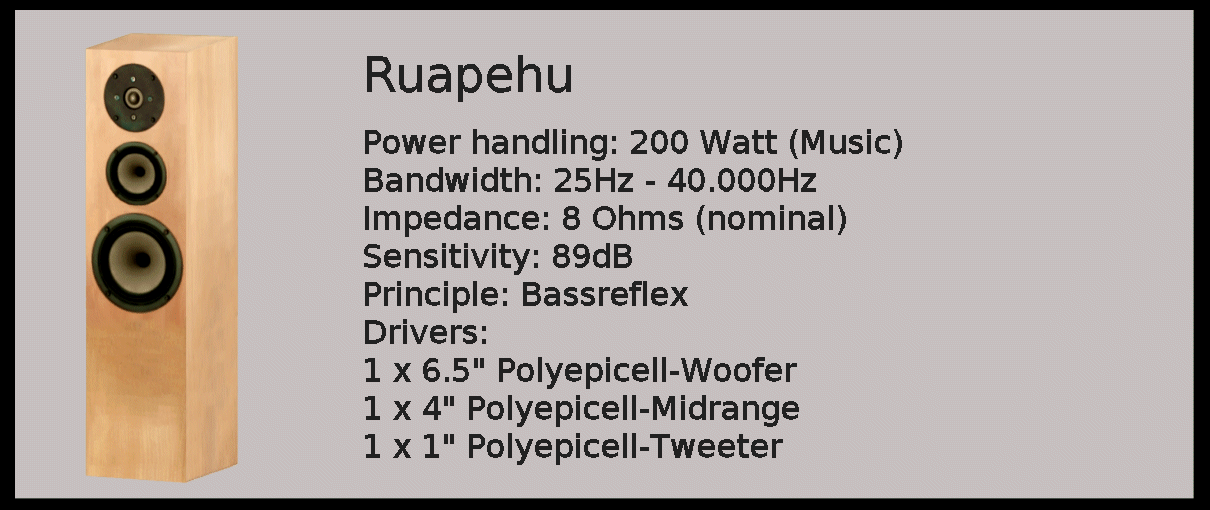

RUAPEHU

The loudspeaker RUAPEHU is a slim three-way design loudspeaker with very low extended bass response. The KEA AUDIO RUAPEHU has a powerfull and impulsive bass as well as transparent and sparkling treble. It is designed for middle-sized to large rooms.
  high end loudspeakerhifi loudspeaker

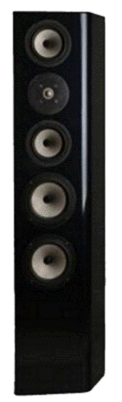

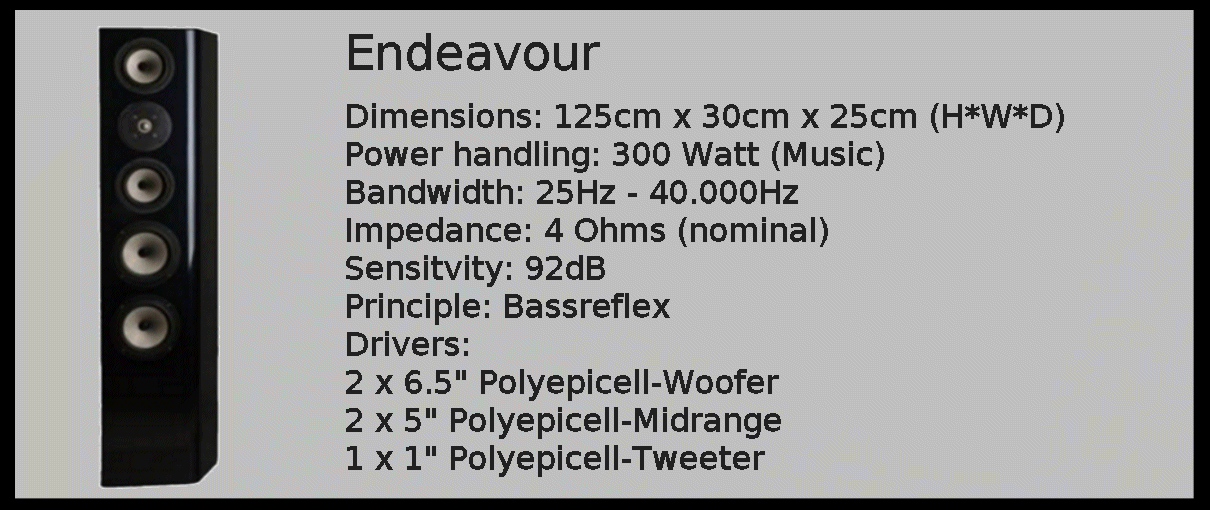

ENDEAVOUR

The concept for the three-way loudspeaker KEA AUDIO ENDEAVOUR is the best possible sound without compromise. A breathtaking and ultra low bass leaves even big subwoofers behind. The extraordinary rhomboid shape of the base and top eliminates reflections inside the cabinet and is an exceptional elegant feature. The KEA AUDIO ENDEAVOUR has a voluminous, powerful sound and an extreme clarity.




hifi design loudspeakerhifi loudspeaker

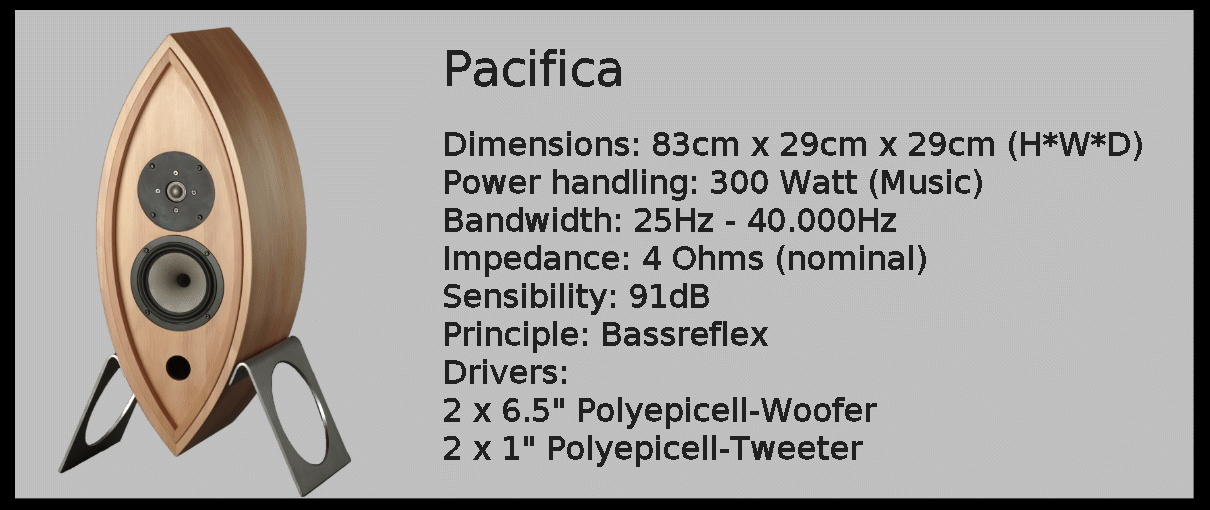

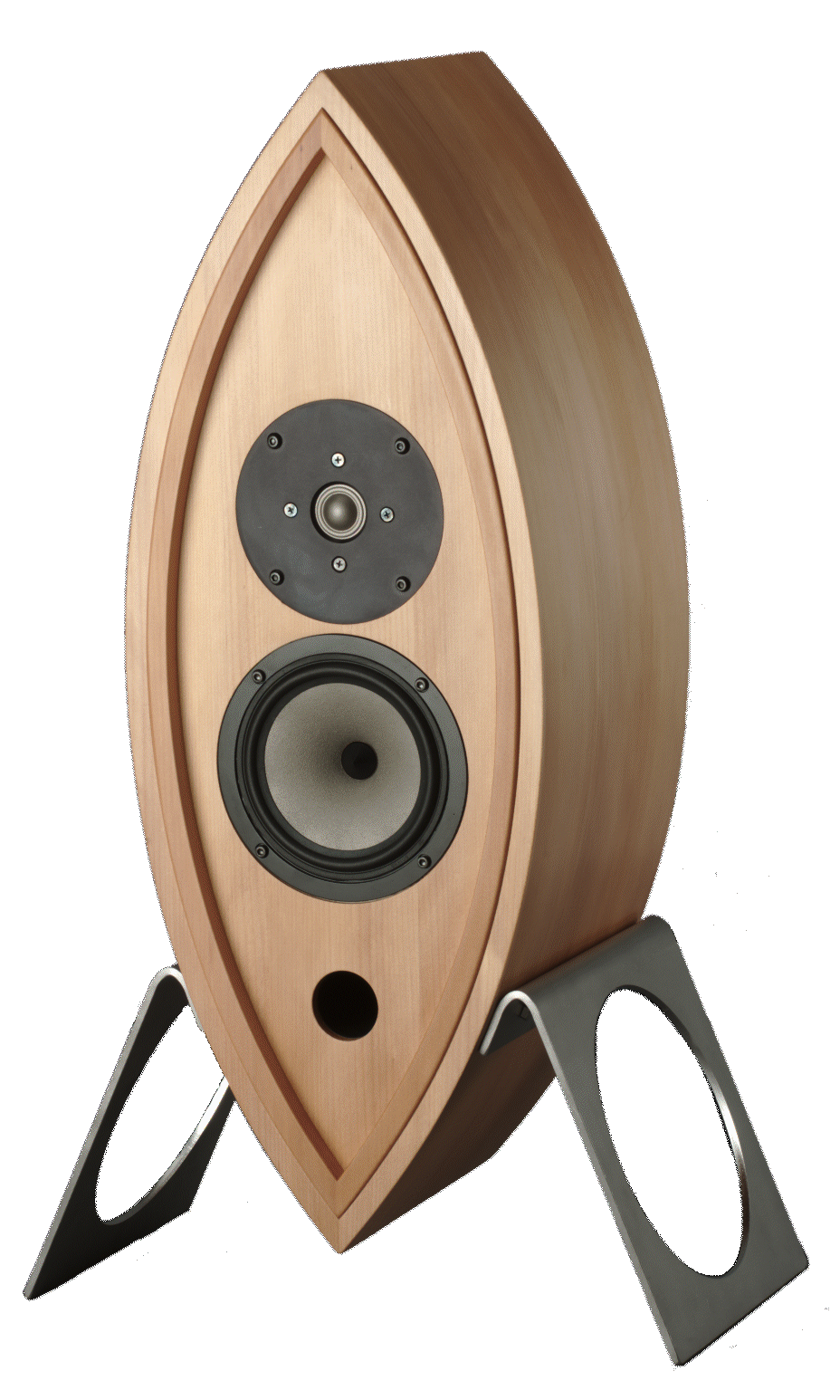

PACIFICA

The design loudspeaker KEA AUDIO PACIFICA is a piece of art made from the finest ancient Pacific Kauri Timber, hand-crafted by local wood craftspeople. The design is inspired by the pacific fish which is traditionally the most important food source of the Pacific people. The KEA AUDIO PACIFICA is omni-polar and has two sets of woofers and tweeters, one set directing to the listener and the other to the wall.

  hifi design speakerhifi loudspeaker

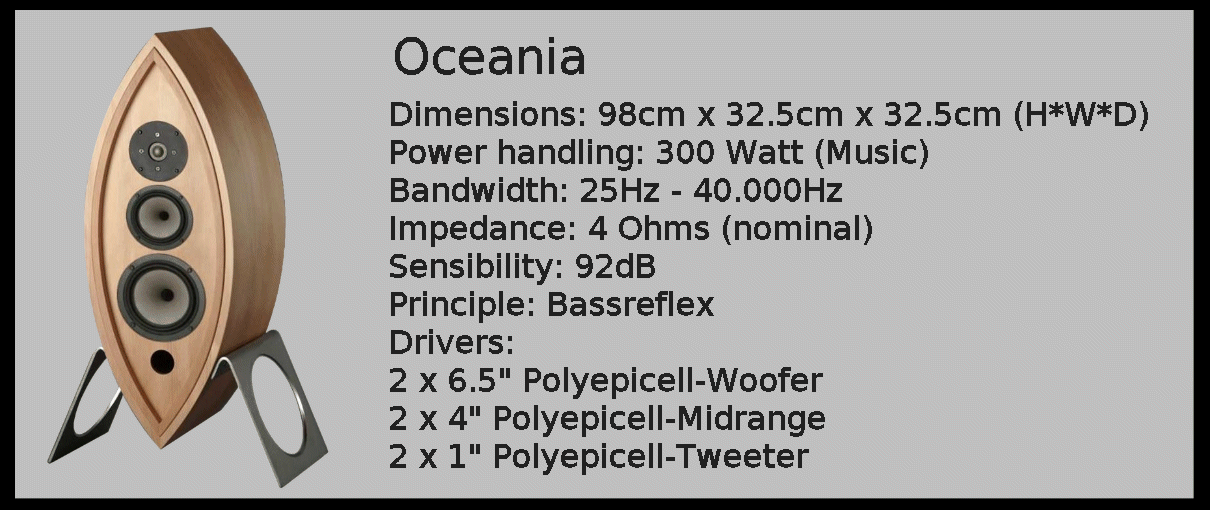

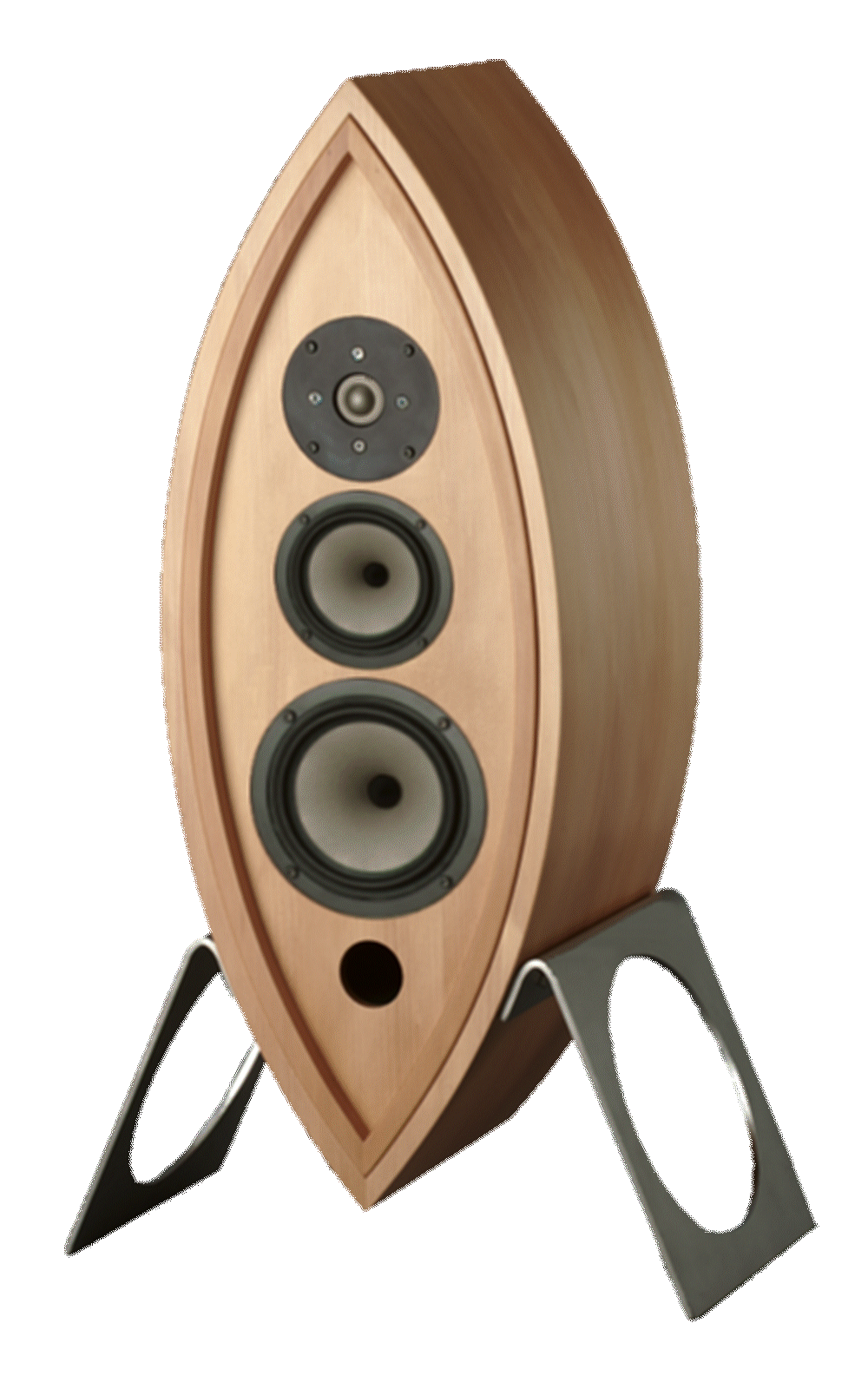

OCEANIA

The design loudspeaker KEA AUDIO OCEANIA is a piece of art made from the finest ancient New Zealand Kauri Timber, hand-crafted by local wood craftspeople. The design is inspired by the pacific fish which is traditionally the most important food source of the Pacific people. The KEA AUDIO OCEANIA is omni-polar and has two sets of woofers, midrange and tweeters, one set directing to the listener and the other to the wall.

email us






  Home
Technology



Kea Audio produces High End Hifi Stereo Louspeakers and Amplifiers with the goal to achieve the best music reproduction. In order to accomplish that we undertake a lot of research and develope new technology and materials.

German Audio Designer and Acoustic Engineer Dipl.Ing. J. Lang has over 20 years experience in loudspeaker design and worked many years on the development of an innovative new loudspeaker cone material, a polymer hard foam called 'Polyepicell'.

Using the same material and cone technology for woofers and tweeters we achieve a very homogenous natural sound.

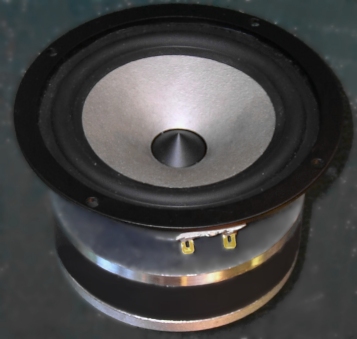

Photo: Kea Audio 5 inch polyepicell woofer.

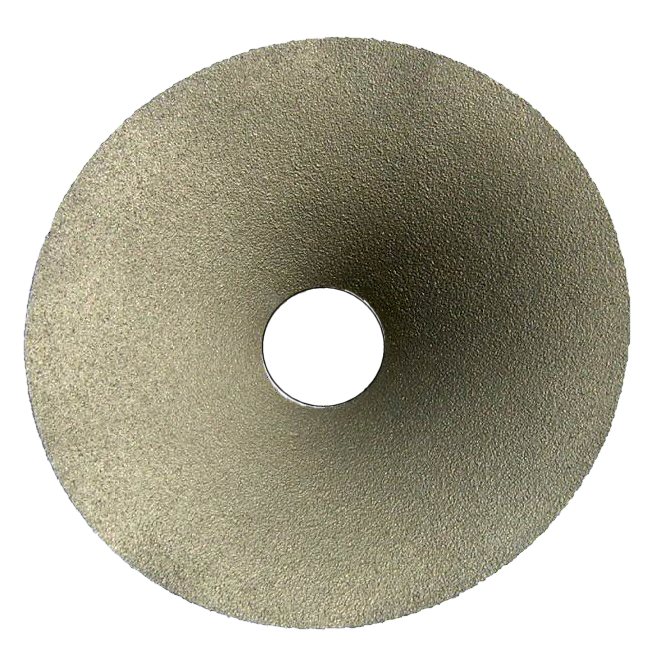

Photo: Polyepicell Woofer Cone - Thickness 1mm



Polyepicell has superior properties and combines qualities like stiffness and light weight. The enormous stiffness of Polyepicell reduces bending and the specially designed damping calms the feared cone breakups.
The sound of this amazing loudspeaker is therefore extremely transparent and natural and the light weight of the cones allows an accurate and fast impulse response with an impact that leaves listeners astounded.





The light weight causes a high loudspeaker efficiency, which means that the electrical energy from the amplifier is transformed into a big percentage of acoustic energy of the loudspeaker, so amplifiers with little output power can drive our speakers sufficiently and at high volumes.

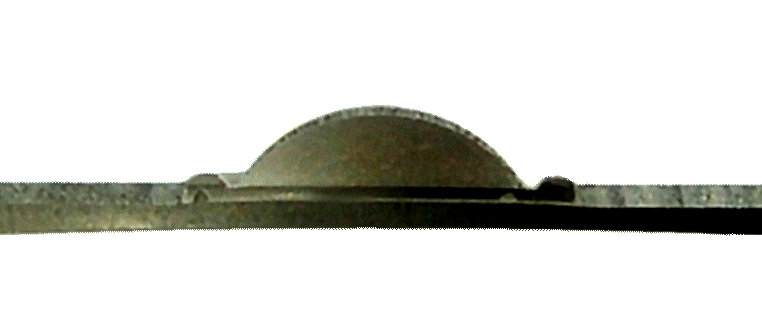

Photo: Polyepicell Tweeter Cone - Thickness 0.2mm (side view)

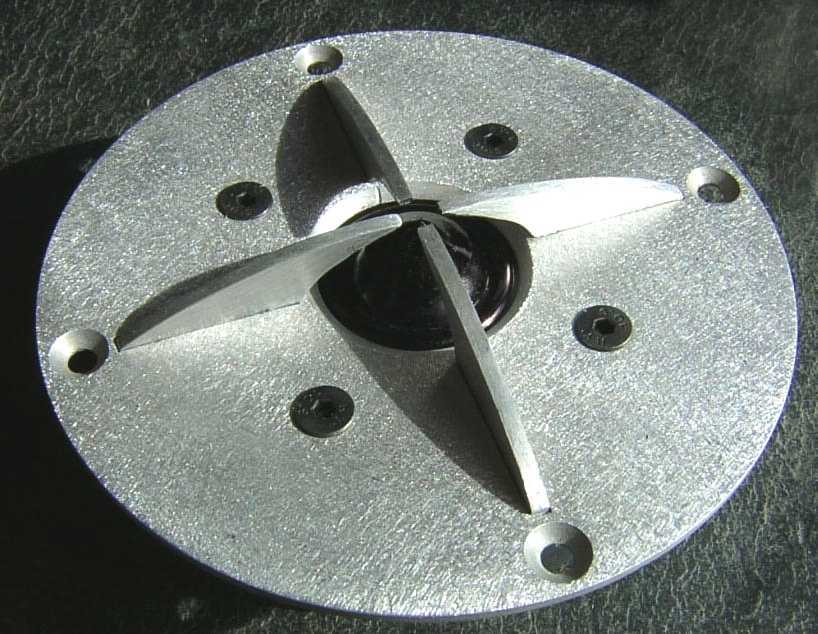

Photo: new polyepicell ringradiator with phaseplug and diffusors



Since all parts are carefully selected for best performance, designed and assembled at our own premises, a perfect matching and balance can be achieved. No compromises are made and only the best is good enough.

Listen to these speakers and experience the exhilarating and dynamic sound.

This is state of the art loudspeaker design technology.




email:

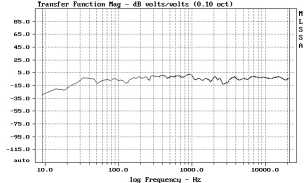

This is the frequency response of our loudspeaker Spear. The measurement is taken in a standard living room. The low frequency reproduction starts at 25Hz and represents an extremely low value. The upper frequency goes well over the measured band of 20 000Hz.



 high end loudspeaker oceania




 loudspeaker cone - polyepicell

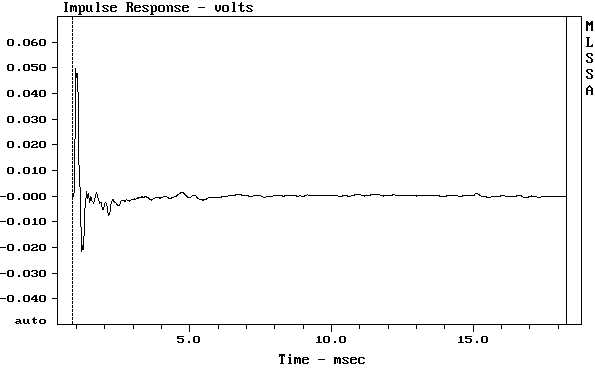

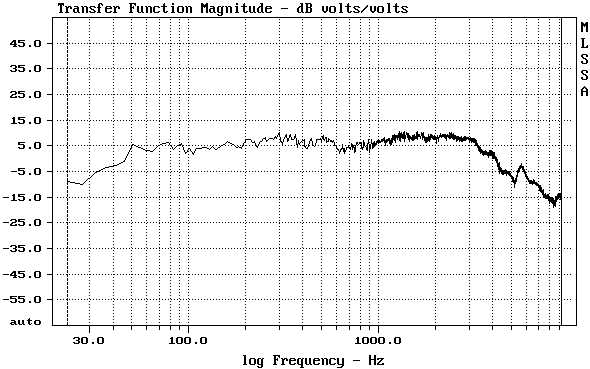

Here you see the impuls response of our 6.5" Polyepicell woofer. This represents an excellent impuls reproduction. The frequency response shows are very smooth curve up to 3500Hz where the woofer rolls off naturally. This is the crossover frequency and eliminates the need for steep filters.




On the right the frequency response of our Polyepicell 5 inch woofer is shown. The frequency response is very flat and drops off naturally at the crossover frequency, eliminating the need for passive crossover components



 loudspeaker cone - polyepicell




 loudspeaker cone - polyepicell

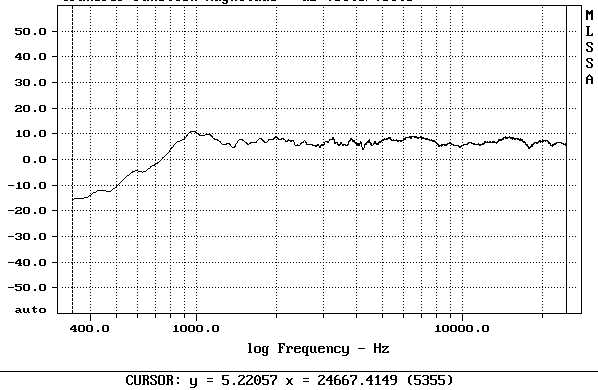

On the left the frequency response of our Polyepicell tweeter is shown. The upper frequency limit is over 40 000Hz, well over the audible range.


    Home
  KEA AUDIO introduces NEW CONE TECHNOLOGY for Stereo LOUDSPEAKERS which enhances the performance of STEREO AND DOLBY SURROUND SYSTEMS Kea Audio produces High End Hifi Stereo Speakers and High End Stereo Amplifiers with the goal to achieve the best sound reproduction. In order to accomplish that we undertake a lot of research and develope new technology and materials. Audio Designer and Acoustic Engineer J. Lang, M.Sc. has over 30 years experience in hifi loudspeaker design and worked many years on the development of an innovative new cone material, a polymer hard foam called 'Polyepicell'. Using the same material for woofers and tweeters we achieve a very homogenous natural sound. Polyepicell has superior properties and combines qualities like stiffness and light weight. The enormous stiffness of Polyepicell reduces bending and the specially designed damping calms the feared cone breakups. The sound of this amazing loudspeaker is therefore extremely transparent and natural and the light weight of the cones allows an accurate and fast impulse response with an impact that leaves listeners astounded. The light weight causes a very high loudspeaker efficiency, which means that the electrical energy from the amplifier is transformed into a big percentage of acoustic energy of the loudspeaker, so amplifiers with little output power can drive our speakers sufficiently and at high volumes. Since all parts are carefully selected for best performance, designed and assembled at our own premises, a perfect matching and balance can be achieved. No compromises are made and only the best is good enough. Listen to these speakers and experience the exhilarating and dynamic sound. 'KEA AUDIO' was named after the rare mountain parrot 'Kea'. The company was founded 20 years ago in Nelson City, a coastal town in the North of the South Island of New Zealand. Nelson is well known for Art and Design. Many renowned Artists and Craftspeople are involved with our products. We use many native and unique timbers which are only found in New Zealand. All cabinets and drivers are hand assembled here in Nelson at our own premises. Our Philosophy emphasizes quality, exclusiveness and individual productions for the connoisseur who is looking for something special This is state of the art loudspeaker design technology.



Kea Audio
5B Atarau Way
J.Lang MSc
Nelson
New Zealand
email us:




we reserve the right to make optical or technical changes to the above modells at any time without further notice.
